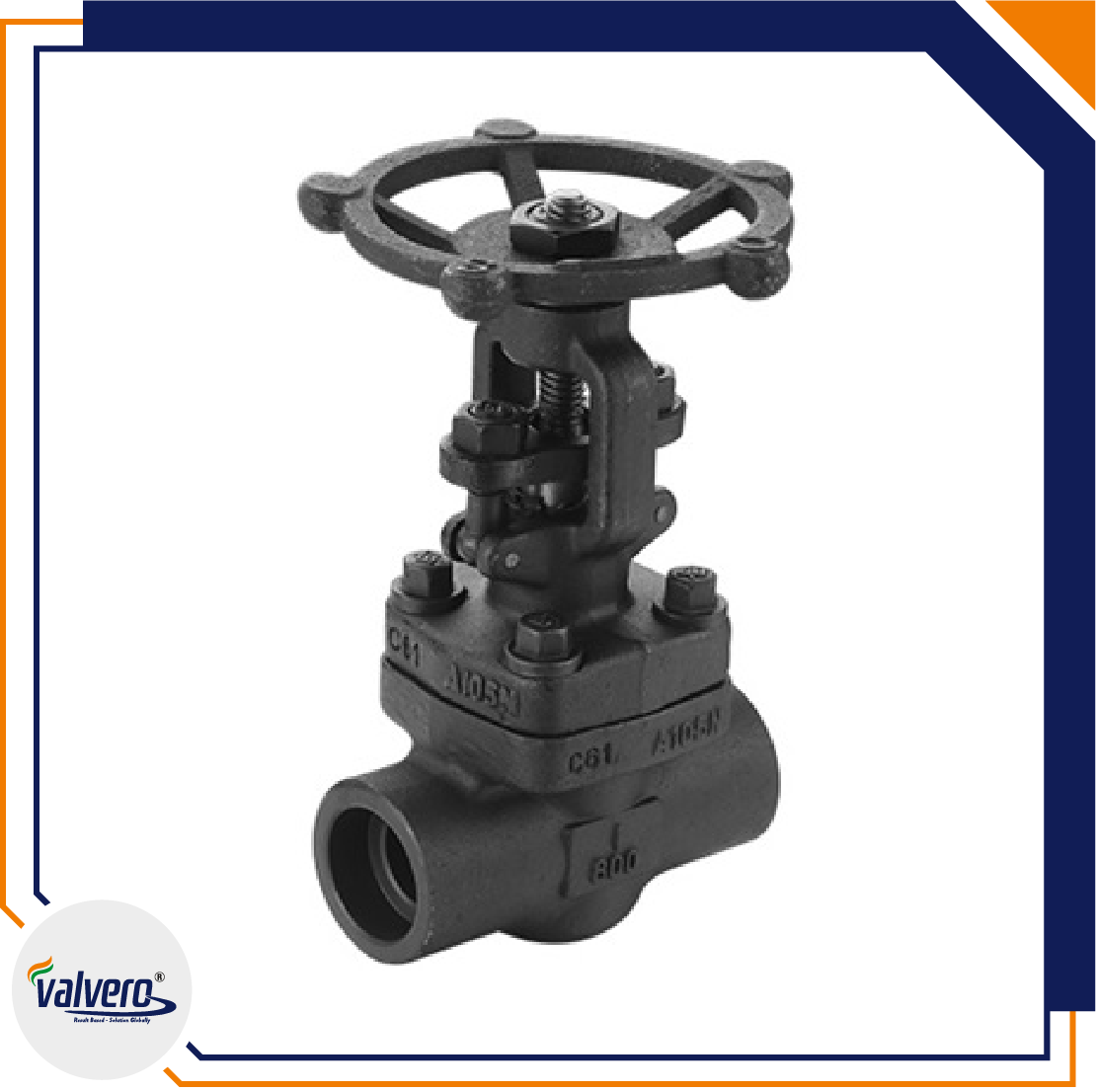

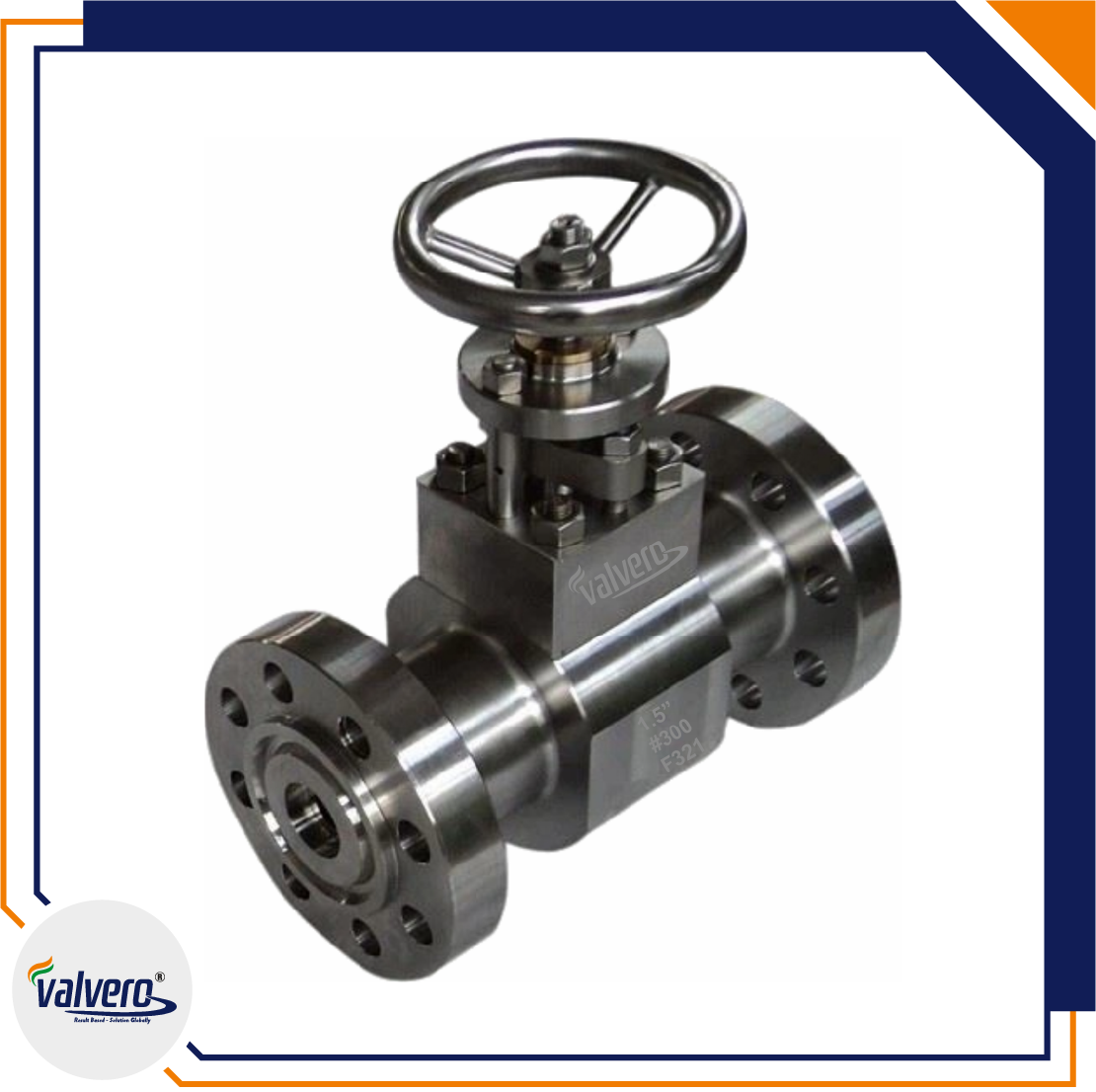

Valvero manufactures a versatile range of Small Bore Forged Steel Globe Valves. The portfolio comprises valves in T-pattern as well as Cryogenic and Bellows-sealed valves. Forged Steel Globe Valves is available in a variety of materials and end connections to meet customer requirements.
As a standard, valves in ASME classes up to 800,1500 are supplied with bolted body-bonnet joints; for higher pressure classes, screwed joints are offered.
Series: FBV-FG120
Size: 1/4″ to 2” (8mm to 50mm)
Material: ASTM A105, A350 LF2, A479 F316, A182 F51
Trims: 13% Cr,304,316,17-4PH
Port: Full & Regular (Reduced) Bore
Pressure Rating: ASME #800,#1500,#2500
End Connection: Butt Weld, NPT, BSP, SW
Construction: Bolted Bonnet
Operation: Handwheel, Gear Operated, Electric Actuator
Design Standard: API 602, ASME B16.34 – BS 5352
Pressure Testing: API 598
Face to Face: ANSI B 16.10
Butt Weld: ANSI B 16.25
Socket Weld: ANSI B 16.11
Screwed End: ANSI B 1.20.1 [ BSP / NPT ]
Quality Assurance: ISO 9001
NACE: MR 0103, MR 0175
- The standard construction of body-bonnet connections is bolted bonnet or welded bonnet type.
- Full die forged structure for all pressure-containing parts.
- The standard seat design is screwed-in type, integral type is available as an alternative construction.
- Low operation torque design.
Self-aligning two-piece packing gland. - Body-guided disc for perfect seat and disc alignment.
- These kinds of valves indeed are the perfect preference to manipulate leakage troubles in residential and industrial locations. Commonly, the industrial applications for globe valves include cooling systems, chemical feed systems, feed water systems, turbine lube oil systems, and any other system where there is no concern for pressure drop.
- Globe valves are used in many applications wherein steady fluid glide is not necessarily required such as in chemical feed systems and turbine lube oil structures.
- Also, globe valves find their prime usage in process plants, power plants, and wastewater plants.
- In the lubrication systems, steam lines, and coolant pipes, globe valves are required to regulate the fluid flow.
- For commercial and residential buildings, where there is a requirement for upstream fluid flow, globe valves remain in huge demand.
