The Valvero metal seated ball valve line outperforms in the harshest industrial conditions. This includes extremely high temperatures up to 350°C, abrasive mediums such as fly ash, slurry, and pulp applications, and pressures as high as class 1500.
Valvero metal seated ball valve line exceeds FCI-70-2 Class V leak rate with outstanding repeatability. Class VI leak rate is also feasible upon special request.
Series: BM100
Size: 1″ to 10” (25 mm to 250mm)
Material: ASTM A 216 WCB, ASTM A351 Gr CF8, ASTM A 351 Gr CF8M, ASTM A 217 Gr WC6, A 217 Gr WC9
Special Material: Duplex 4A, 5A, AB2, Inconel, Monel, CN7M

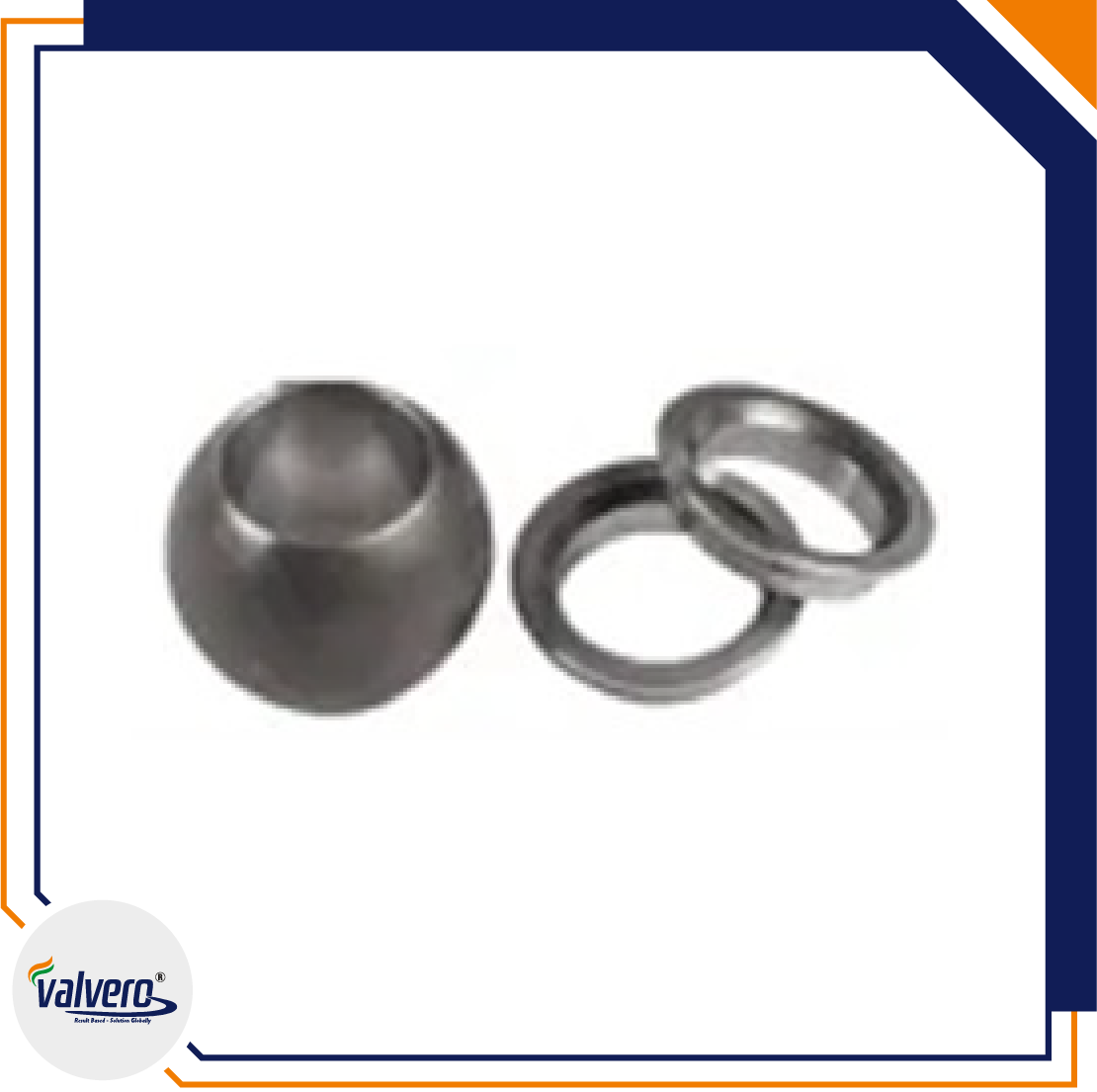

Ball: Solid (SS 304, SS316, Duplex 4A, Inconel, Monel,17-4PH)
Seat: (SS 304 / SS316 + TC ) (SS 304 / SS316 + ST6)
Port: Full & Regular (Reduced) Bore
Pressure Rating: ASME #150, #300, #600 #900
End Connection: Raised Flanged, Butt Weld, NPT, BSP
Design: Floating, Turnion
Construction: 2 Piece / 3 Piece (2-Way)
Temperature Range: -20 to 350 degrees
Operation: Lever, Gear Operated, Pneumatic Actuator, Electric Actuator
Design Standard: API 6D, API 608, ASME B16.34, ISO 17292
Pressure Testing: API 6D, API 598, EN 12266-1, ISO 5208
Face to Face: ANSI B 16.10
Flanged Drilling: ANSI 16.5
Butt Weld: ANSI B 16.25
Socket Weld: ANSI B 16.11
Screwed End: ANSI B 1.20.1 [ BSP / NPT ]
Fire Safe Testing: BS 6755 PART II / API 607 / API 6FA
Quality Assurance: ISO 9001
Fugitive Emissions: TA-Luft, ISO 15848-1, API 641
NACE: MR 0103, MR 0175
- Unique, the metal seated ball valve with single-seat ball valve design. It has a flat spring set acting through a hard-faced bearing against the bottom ball shaft which provides sufficient initial ball-seat load for valve tightness, even at low delta P.
- Metal seated ball valve proven in qualification tests and field operation to be solids–proof, even for the toughest applications on slurry service with solids particles.
- Tightness rates: Allowable leakage rate at full Delta P: ASME/ FCI 70-2 Class VI/V. Tighter shutoff is available upon request. The leakage rate also can be customization from an end-user request
- The metal seated ball valve with standard extension bonnet/stem, whose design is based on the different temperature ranges.
- Uni-directional or bi-directional sealing
- Molten Sulphur
- Slurries
- High Temperature steam in Power
- Plants,Refineries & other Plant
- Ash Handling Equipment for Boilers
