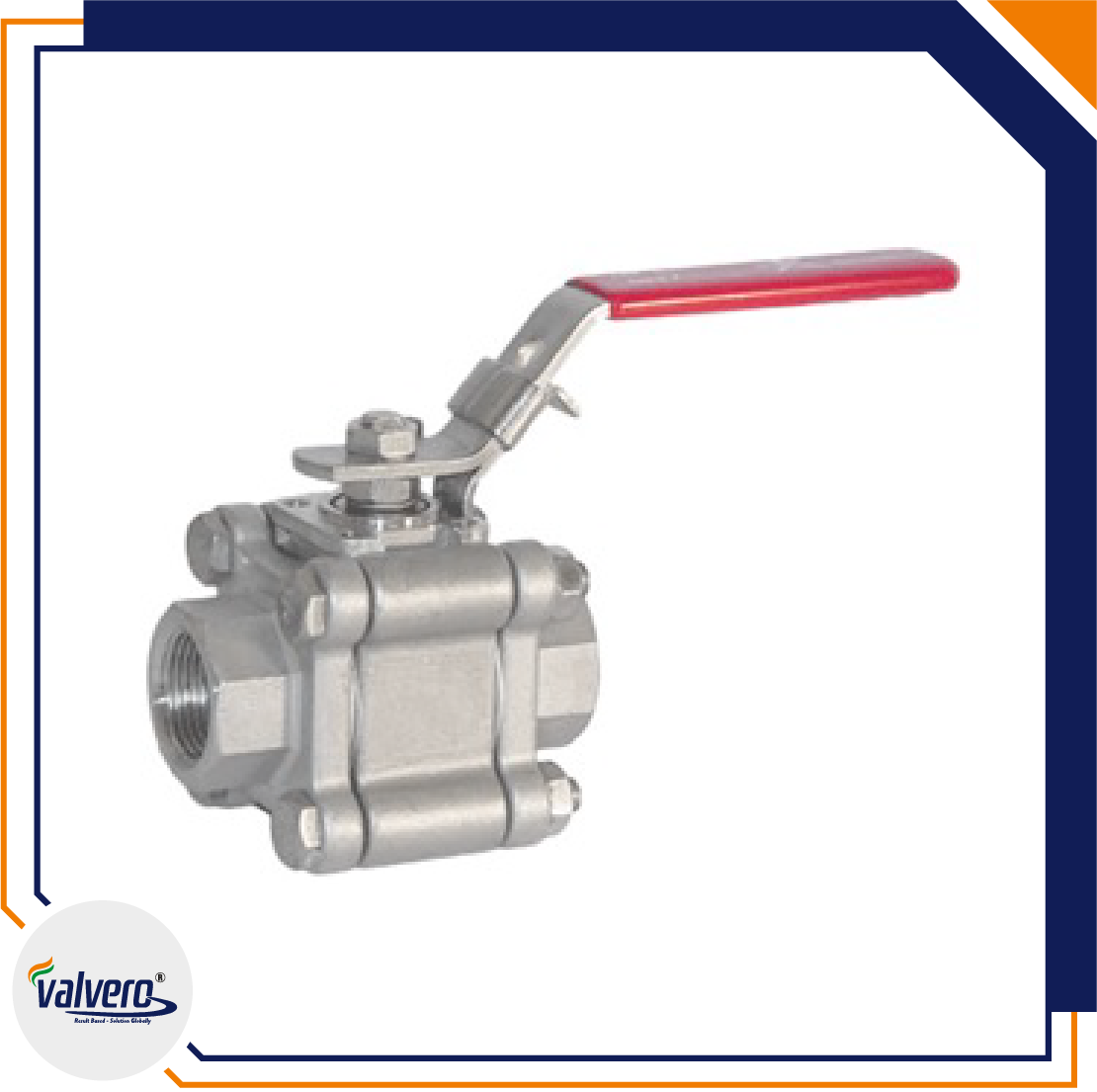

Forged floating ball valves are a form of quarter-turn valve that uses a hollow, perforated, and pivoting ball (called a floating ball) to control flow through it.
The floating design utilizes natural line pressure to press and seal the ball against the downstream seat. The ball is suspended in the flowing medium (floating) and held in position by the compression of the two seats against it.
It is open when the ball’s hole is in line with the flow and closed when it is pivoted 90 degrees by the valve handle. Floating ball valves are durable, performing well after many cycles, and reliable, and close securely even after long periods of disuse.
Series: FB100
Size: 1/2″ to 2” (15 mm to 50mm)
Material: ASTM A105, A350 LF2, A479 F316, A182 F51
Seat MOC: PTFE, RPTFE, PEEK,
Ball: Solid
Port: Full & Regular (Reduced) Bore
Pressure Rating: ASME #800, #1500
End Connection: Butt Weld, NPT, BSP, SW
Design: Floating ( Soft Seated)
Construction: 3 Piece (2-Way)
Operation: Lever, Gear Operated, Pneumatic Actuator, Electric Actuator
Design Standard: BS EN ISO 17292 [ BS 5351 ] ASME B 16.34 / API 6D / BE EN ISO 12516
Pressure Testing: BS EN 12266 II / API 598 / API 6D
Face to Face: ANSI B 16.10
Butt Weld: ANSI B 16.25
Socket Weld: ANSI B 16.11
Screwed End: ANSI B 1.20.1 [ BSP / NPT ]
Fire Safe Testing: BS 6755 PART II / API 607 / API 6FA
Quality Assurance: ISO 9001
Fugitive Emission: ISO 15848-1, API 622
NACE: MR 0103, MR 0175
- Tight sealing mechanism
- Compact and versatile
- Easy to clean and maintain
- Simple operation
- Low operation torque
- Long term lifespan
- Suitable for high temperature and pressure rating
- High resistance to Corrosion and Erosion
- Full-customize for application-specific solution
- Anti-blow-out proof stem design
- Ball valves are used as bubble-tight shut-off valves or on/stop valves to control, regulate, and refine different fluids.
- They find their application in all kinds of air, vapor, and hydrocarbon systems.
- The instrument tubing process makes use of ball valves to connect different instruments.
- Soft-seated ball valves are used in low-pressure and low-temperature applications.
- In upstream applications, ball valves are used to regulate the flow of oil and gas.
- In midstream applications, they are used to protect the equipment.
- In downstream applications, ball valves are used in the refining oil process.
